Chillers up to 10 kW : 냉각기

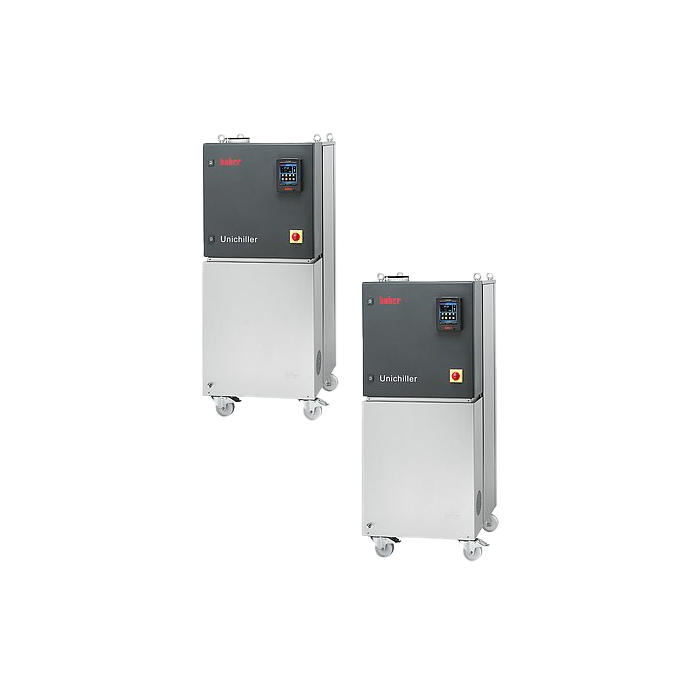

최대 10kW의 냉각 용량을 갖춘 Unichiller는 최고의 효율성, 안정적인 압력 및 전달 용량, 일정한 냉각수 온도를 제공합니다. 이 장치는 생물학적 및 화학적 공정의 열 제거는 물론 기술 장비 냉각에도 적합합니다.

Order No. Model Temperature range Cooling capacity Mains voltage

3025.0063.01	Unichiller 030T	-10...40	3 @ 15°C	400V 3~ 50Hz
3014.0052.01	Unichiller 040T	-10...40	4 @ 15°C	400V 3~ 50Hz
3014.0054.01	Unichiller 040T-H	-10...100	4 @ 15°C	400V 3~ 50Hz
3055.0002.01	Unichiller 045T	-20...40	4,5 @ 15°C	400V 3~ 50Hz
3055.0001.01	Unichiller 045T-H	-20...100	4,5 @ 15°C	400V 3~ 50Hz
3038.0001.01	Unichiller 050	-20...40	5 @ 20°C	400V 3~ 50Hz
3038.0003.01	Unichiller 050-H	-20...100	5 @ 20°C	400V 3~ 50Hz
3038.0056.01	Unichiller 050w	-20...40	5 @ 20°C	400V 3~ 50Hz
3038.0057.01	Unichiller 050w-H	-20...100	5 @ 20°C	400V 3~ 50Hz
3015.0061.01	Unichiller 055T	-10...40	5,5 @ 15°C	400V 3~ 50Hz
3015.0063.01	Unichiller 055T-H	-10...100	5,5 @ 15°C	400V 3~ 50Hz
3040.0031.01	Unichiller 075	-20...40	7,5 @ 20°C	400V 3~ 50Hz
3040.0032.01	Unichiller 075-H	-20...100	7,5 @ 20°C	400V 3~ 50Hz
3040.0009.01	Unichiller 075w	-20...40	7,5 @ 20°C	400V 3~ 50Hz
3040.0010.01	Unichiller 075w-H	-20...100	7,5 @ 20°C	400V 3~ 50Hz
3059.0001.01	Unichiller 100	-20...40	10 @ 20°C	400V 3~ 50Hz
3059.0002.01	Unichiller 100-H	-20...100	10 @ 20°C	400V 3~ 50Hz
3059.0009.01	Unichiller 100w	-20...40	10 @ 20°C	400V 3~ 50Hz
3059.0010.01	Unichiller 100w-H	-20...100	10 @ 20°C	400V 3~ 50Hz
3026.0111.01	Unichiller 060T	-20...40	6 @ 15°C	400V 3~ 50Hz
3026.0112.01	Unichiller 060T-H	-20...100	6 @ 15°C	400V 3~ 50Hz
3016.0024.01	Unichiller 070T	-10...40	7 @ 15°C	400V 3~ 50Hz
3016.0029.01	Unichiller 070T-H	-10...100	7 @ 15°C	400V 3~ 50Hz
3017.0029.01	Unichiller 100T	-20...40	10 @ 15°C	400V 3~ 50Hz
3017.0030.01	Unichiller 100T-H	-20...100	10 @ 15°C	400V 3~ 50Hz
3038.0004.01	Unichiller P050	-20...40	5 @ 20°C	400V 3~ 50Hz
3038.0005.01	Unichiller P050-H	-20...100	5 @ 20°C	400V 3~ 50Hz
3038.0058.01	Unichiller P050w	-20...40	5 @ 20°C	400V 3~ 50Hz
3038.0059.01	Unichiller P050w-H	-20...100	5 @ 20°C	400V 3~ 50Hz
3040.0033.01	Unichiller P075	-20...40	7,5 @ 20°C	400V 3~ 50Hz
3040.0034.01	Unichiller P075-H	-20...100	7,5 @ 20°C	400V 3~ 50Hz
3040.0011.01	Unichiller P075w	-20...40	7,5 @ 20°C	400V 3~ 50Hz
3040.0012.01	Unichiller P075w-H	-20...100	7,5 @ 20°C	400V 3~ 50Hz
3059.0003.01	Unichiller P100	-20...40	10 @ 20°C	400V 3~ 50Hz
3059.0004.01	Unichiller P100-H	-20...100	10 @ 20°C	400V 3~ 50Hz
3059.0011.01	Unichiller P100w	-20...40	10 @ 20°C	400V 3~ 50Hz
3059.0012.01	Unichiller P100w-H	-20...100	10 @ 20°C	400V 3~ 50Hz
3025.0056.01	Unichiller 030Tw	-20...40	3 @ 15°C	400V 3~ 50Hz
3025.0052.01	Unichiller 030Tw-H	-20...100	3 @ 15°C	400V 3~ 50Hz
3014.0061.01	Unichiller 040Tw	-10...40	4 @ 15°C	400V 3~ 50Hz
3014.0066.01	Unichiller 040Tw-H	-10...100	4 @ 15°C	400V 3~ 50Hz
3015.0078.01	Unichiller 055Tw	-10...40	5,5 @ 15°C	400V 3~ 50Hz
3015.0079.01	Unichiller 055Tw-H	-10...100	5,5 @ 15°C	400V 3~ 50Hz
3026.0106.01	Unichiller 060Tw	-20...40	6 @ 15°C	400V 3~ 50Hz
3026.0119.01	Unichiller 060Tw-H	-20...100	6 @ 15°C	400V 3~ 50Hz
3016.0030.01	Unichiller 070Tw	-10...40	7 @ 15°C	400V 3~ 50Hz
3016.0032.01	Unichiller 070Tw-H	-10...100	7 @ 15°C	400V 3~ 50Hz
3017.0040.01	Unichiller 100Tw	-20...40	10 @ 15°C	400V 3~ 50Hz
3017.0039.01	Unichiller 100Tw-H	-20...100	10 @ 15°C	400V 3~ 50Hz
