Vacuum Display | Pointer-type vacuum pressure gauge | Pointer-type differential pressure vacuum gauge with rotatable vacuum value | LED digital display, push button input of the vacuum value |
Shelf | Aluminum shelf*1 | Aluminum shelf*2 | Fixed electric heating aluminum plate*2 | Fixed electric heating aluminum plate*3 | Fixed electric heating aluminum plate*2 | Fixed electric heating aluminum plate*3 |
Optional Accessories | Vacuum pump: 2XZ-2(AC 220V, 50Hz; 220V, 60Hz; 110V, 60Hz), vacuum tube, external temperature protection device, LCD temperature controller, LCD temperature controller+RS485, LCD temperature controller+mini dot matrix printer, RS485 to USB converter | External temperature protection device*2, LCD temperature controller*2, LCD temperature controller*2+RS485, LCD temperature controller*2+mini dot matrix printer, RS485 to USB converter(BOV-90 series); External temperature protection device*3, LCD temperature controller*3, LCD temperature controller*3+RS485, LCD temperature controller*3+mini dot matrix printer, RS485 to USB converter(BOV-215 series) |
특징:
1. 외부 재질: 분사 표면이 있는 냉간 압연 강판; 내부 재질: SUS 스테인리스 강판.
2. LED 디스플레이가 있는 PID 마이크로프로세서 온도 제어.
3. 우수한 기밀성을 위한 일체형 성형 실리콘 고무 도어 실링 링.
4. 강화된 방탄 이중 유리문.
5. 매개변수 메모리 기능이 있어 전원이 복구되면 자동으로 작업을 재개합니다.
6. 히터는 선반 위 챔버에 위치하며, 별도의 온도 조절 기능을 갖추고 있어 가열 시간이 짧고 균일한 온도 균일도가 우수합니다. (BOV-30L/50L 제외)
Technical Parameters:

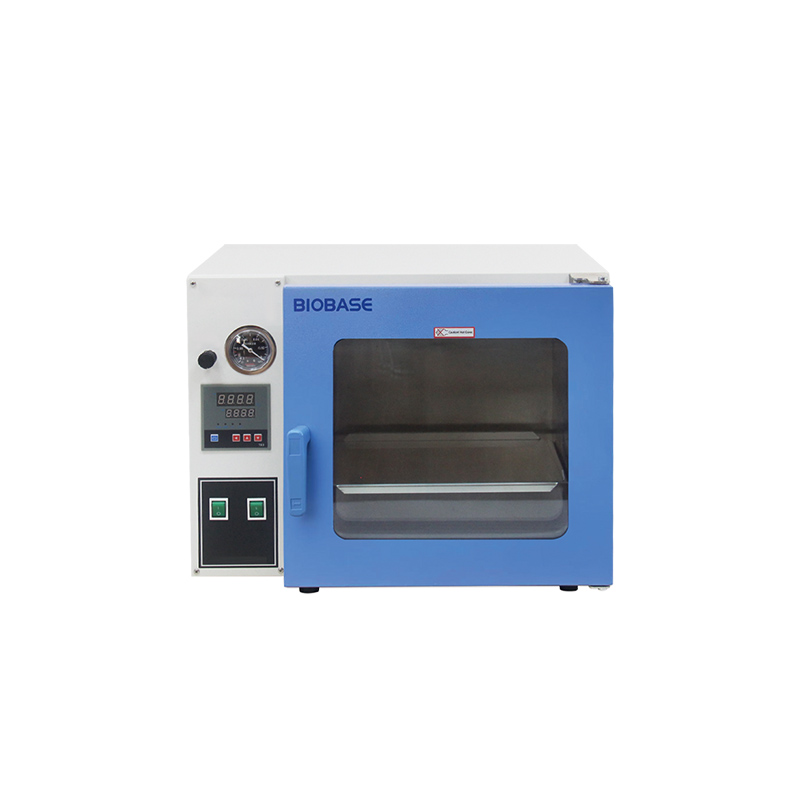

Model
BOV-30V
BOV-50V
BOV-90V
BOV-215V
BOV-90VL
BOV-215VL
Capacity
23L
53L
91L
213L
91L
213L
Temp. Range
RT+10~200℃
RT+10~250℃
RT+10~200℃
Temp. Fluctuation
±1℃
Vacuum Degree
＜133Pa
Vacuum Display
Pointer-type vacuum pressure gauge
Pointer-type differential pressure vacuum gauge with rotatable vacuum value
LED digital display, push button input of the vacuum value
Vacuum Control
Manual control
Automatic differential pressure control
Pressure sensor+deviation control
Timing Range
0~9999min
Power Supply
AC 220V, 50/60Hz (Standard); 110V, 50/60Hz (Optional) (External transformer)
Consumption
500W
1400W
1600W
2200W
1600W
2200W
Shelf
Aluminum shelf*1
Aluminum shelf*2
Fixed electric heating aluminum plate*2
Fixed electric heating aluminum plate*3
Fixed electric heating aluminum plate*2
Fixed electric heating aluminum plate*3
Standard Accessories
Shelves
Shelves, vacuum pump, vacuum tube
Optional
Accessories
Vacuum pump: 2XZ-2(AC 220V, 50Hz; 220V, 60Hz; 110V, 60Hz), vacuum tube, external temperature protection device, LCD temperature controller, LCD temperature controller+RS485, LCD temperature controller+mini dot matrix printer, RS485 to USB converter
External temperature protection device*2, LCD temperature controller*2, LCD temperature controller*2+RS485, LCD temperature controller*2+mini dot matrix printer, RS485 to USB converter(BOV-90 series);
External temperature protection device*3, LCD temperature controller*3, LCD temperature controller*3+RS485, LCD temperature controller*3+mini dot matrix printer, RS485 to USB converter(BOV-215 series)
Internal Size(W*D*H)
296*300*270mm
416*370*346mm
450*450*450mm
556*600*640mm
450*450*450mm
556*600*640mm
External Size(W*D*H)
590*492*468mm
710*562*544mm
611*641*1398mm
721*794*1638mm
611*641*1398mm
721*794*1638mm
Package Size(W*D*H)
670*610*600mm
790*660*670mm
710*710*1550mm
940*810*1800mm
710*710*1550mm
940*810*1800mm
2XZ-2: 580*215*367mm
Net Weight
55kg
67kg
145kg
208kg
143kg
207kg
Gross Weight
65kg
79kg
171kg
245kg
168kg
244kg
2XZ-2: 23kg
