[RICH SMART] Anti-corrosive type oil-free diagram pump

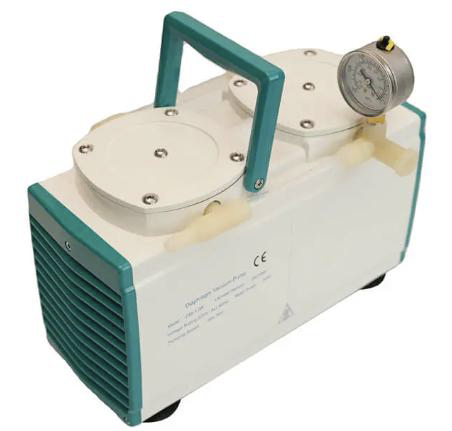

Diagram pump GM-0.25F (Anti-corrosive)

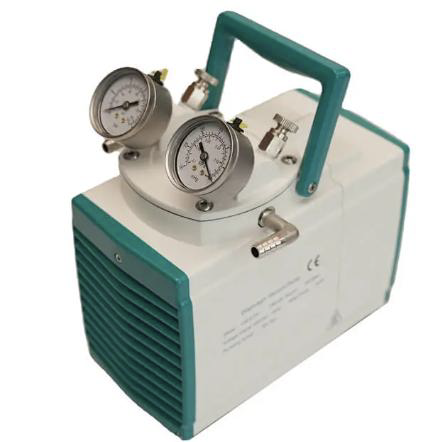

Diagram pump GM-0.33A (Anti-corrosive)

• Speed of evacuation: 15L/min
• Ultimate pressure vacuum: ≥0.095MPa (50mbar)
• Voltage: 110V/220V/230V/240V, 50/60Hz 1phase
• Motor power: 90W
• Pressure: ≥30Psi
• Inlet: dia 6mm
• Outlet: dia 6mm
• Pump head: 2
• Temp of working environment: 7~40℃
• Function: Vacuum & pressure
• Dimension: 245* 150* 167mm
• Noise level: ＜60dB
• Weight: 6KG
• Note: Positive and negative pressure dual-use type
• Diaphragm : PTFE Coated

• Speed of evacuation: 20L/min
• Ultimate pressure vacuum: ≥0.08Mpa, 200mbar
• Voltage: 110V/220V/230V/240V, 50/60Hz 1phase
• Motor power: 160W
• Inlet: diameter 6mm
• Outlet: inner Silencer
• Temp of working environment: 7~40℃
• Function: Vacuum
• Pump head: 1pc
• Dimension: 350* 210* 340mm
• Noise level: ＜60dB
• Weight: 7.5KG
• Diaphragm: PTFE Coated

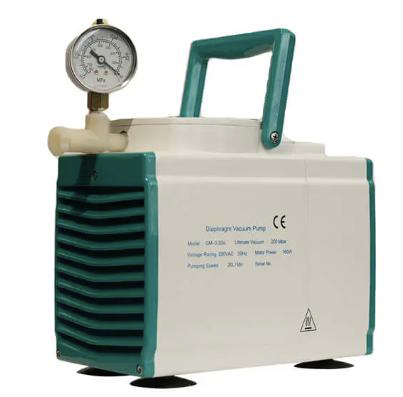

Diagram pump GM-0.5A (Anti-corrosive)

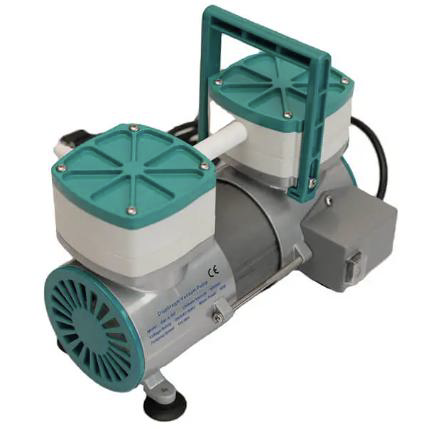

Diagram pump GM-1.0A (Anti-corrosive)

• Speed of evacuation: 30L/min
• Ultimate pressure vacuum: ≥0.08Mpa, 200mbar
• Voltage: 110V/220V/230V/240V, 50/60Hz 1phase
• Motor power: 160W
• Pressure: ≥30Psi
• Inlet: diameter 6mm
• Outlet: diameter 6mm
• Temp of working environment: 7~40℃
• Function: Vacuum & pressure
• Pump head: 1
• Dimension: 320* 220* 350mm
• Noise level: ＜60dB
• Weight: 8KG
• Diaphragm: PTFE Coated

• Speed of evacuation: 60L/min
• Ultimate pressure vacuum: ≥0.08Mpa, 200mbar
• Voltage: 110V/220V/230V/240V, 50/60Hz 1phase
• Motor power: 160W
• Pressure: ≥30Psi
• Inlet: diameter 6mm
• Outlet: diameter 6mm
• Temp of working environment: 7~40℃
• Function: Vacuum & pressure
• Pump head: 2
• Dimension: 410* 250* 350mm
• Noise level: ＜60dB
• Weight: 10KG
• Diaphragm: PTFE Coated

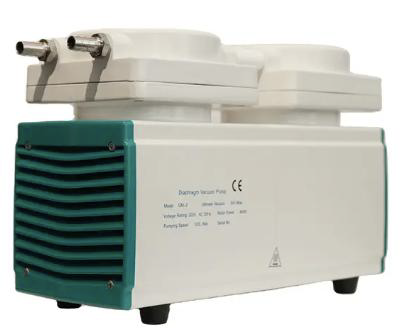

Diagram pump GM-2.0A (Anti-corrosive)

• Speed of evacuation: 120L/min
• Ultimate pressure vacuum: ≥0.08Mpa, 200mbar
• Voltage: 110V/220V/230V/240V, 50/60Hz 1phase
• Motor power: 300W
• Pressure: ≥30Psi
• Inlet: diameter 9mm
• Outlet: diameter 9mm
• Temp of working environment: 7~40℃
• Function: Vacuum & pressure
• Pump head: 2
• Dimension: 390* 150* 250mm
• Noise level: ＜60dB
• Weight: 20KG
• Diaphragm: PTFE Coated
