[RICH SMART] Manifolds vacuum filtration system

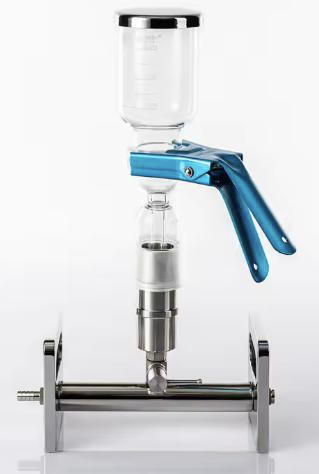

1-Branch Glass Funnel Type

Manifolds Vacuum Filtration

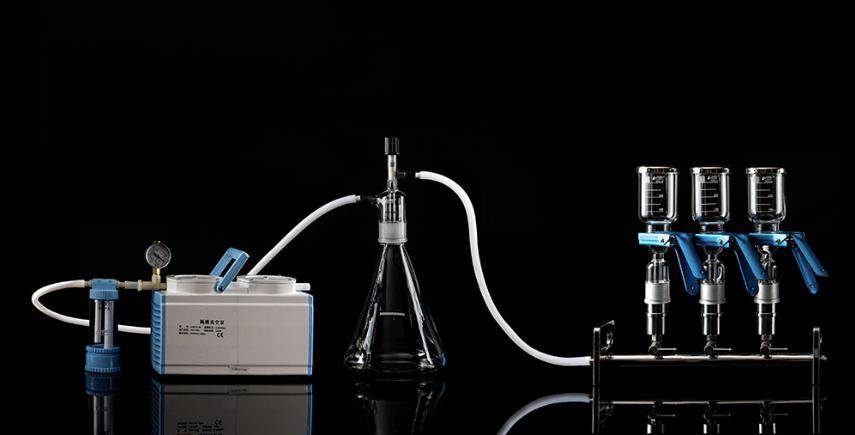

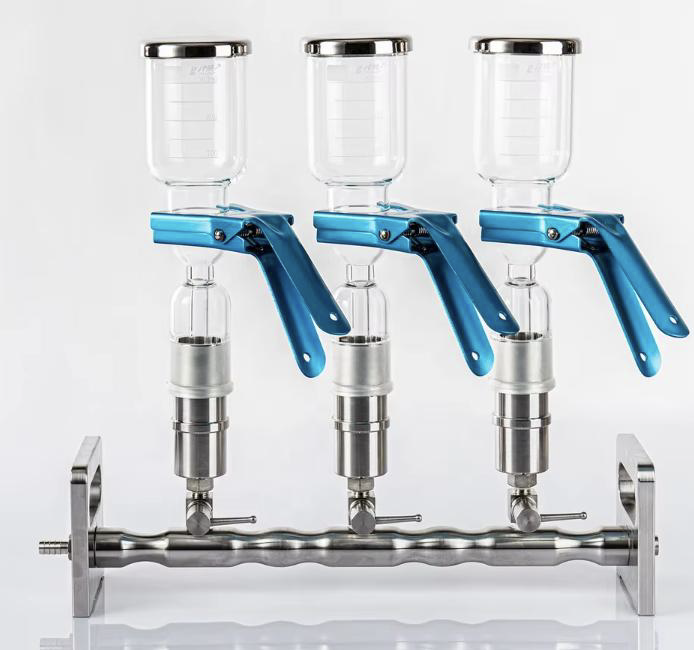

3-Branch Glass Funnel Type

Manifolds Vacuum Filtration

COMPONENTS:

• Lid (316L SS)
• Funnel (High Boro Glass, 300ML)
• Sieve Plate (High Boro Glass Or PTFE, pls confirm)
• Clamp (Aluminum Alloy)
• Filter Head (High Boro Glass)
• Holder (316L SS)
• Pump and collection flask is not included here

COMPONENTS:

• Lid (316L SS)
• Funnel (High Boro Glass, 300ML)
• Sieve Plate (High Boro Glass Or PTFE, pls confirm)
• Clamp (Aluminum Alloy)
• Filter Head (High Boro Glass)
• Holder (316L SS)
• Pump and collection flask is not included here

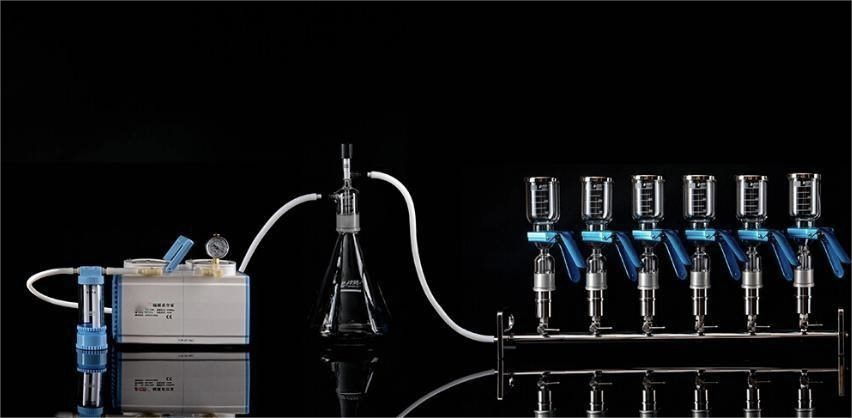

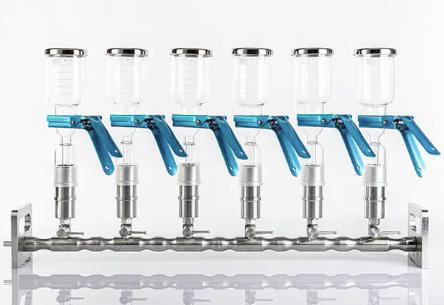

6-Branch Glass Funnel Type

Manifolds Vacuum Filtration

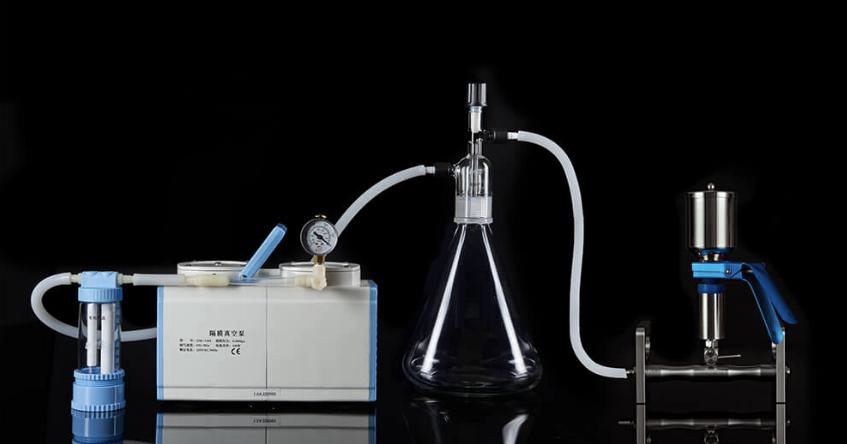

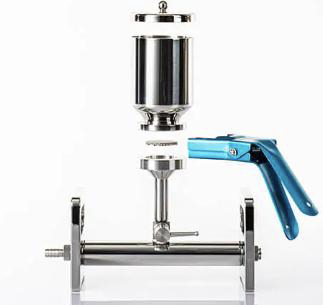

1-Branch SS Integral type

Manifolds Vacuum Filtration

COMPONENTS:

• Lid (316L SS)
• Funnel (High Boro Glass, 300ML)
• Sieve Plate (High Boro Glass Or PTFE, pls confirm)
• Clamp (Aluminum Alloy)
• Filter Head (High Boro Glass)
• Holder (316L SS)
• Pump and collection flask is not included here

COMPONENTS:

• Lid (316L SS)
• Funnel (316L SS, 300ML)
• Sieve Plate (316L SS)
• Clamp (Aluminum Alloy)
• Filter Head (316L SS)
• Holder (316L SS)
• Pump and collection flask is not included here

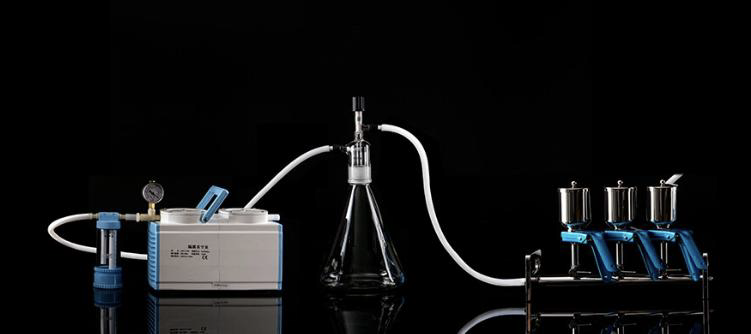

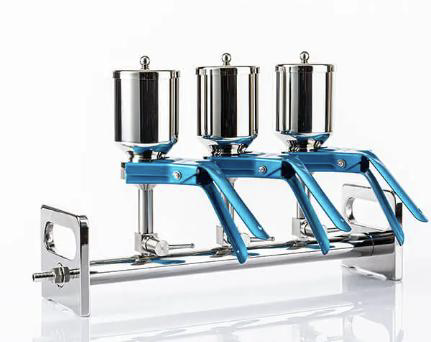

3-Branch SS Integral type

Manifolds Vacuum Filtration

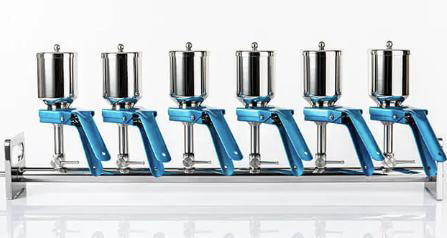

6-Branch SS Integral type

Manifolds Vacuum Filtration

COMPONENTS:

• Lid (316L SS)
• Funnel (316L SS, 300ML)
• Sieve Plate (316L SS)
• Clamp (Aluminum Alloy)
• Filter Head (316L SS)
• Holder (316L SS)
• Pump and collection flask is not included here

COMPONENTS:

• -Lid (316L SS)
• -Funnel (316L SS, 300ML)
• -Sieve Plate (316L SS)
• -Clamp (Aluminum Alloy)
• -Filter Head (316L SS)
• -Holder (316L SS)
• -Pump and collection flask is not included here

FEATURE:

1. Corrosion resistance,easy to sterilization in high temp.
2. The clamp designed rational and tightly,ensure strict sealing.
3. Filtrate several samples at the same time.
4. Each filter holder has individual control valve.
5. Simple structure, filter head is integral with the holder.
6. Easy to install and easy to clean.
7. Environment protection,high efficiency,energy saving,etc.

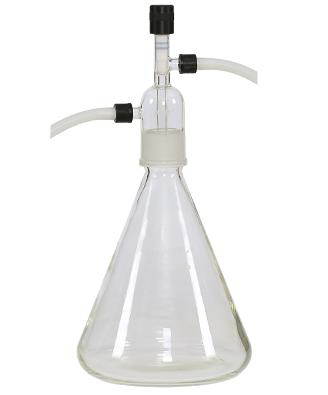

3L Collection flask

Using high-quality thickened high borosilicate glass, top screw head is a conical polytetrafluoroethylene material valve, which tightened to stop liquid in, and loosened to connect and make liquid in.

This design prevents the liquid suction back-flow.

The receiving bottle is 3L, which can be applied to the intermediate reservoir ofmultiple filters.

The 2 joints are 6mm diameter with PTFE material.

Configuration:

• Silicone tube: 2 pieces * 0.8M length
• Triangle bottle: 3L
• Glass exhaust head: 1 set
• PTFE screw head/ valve: 1 pc
